Bolt 1000 LT and 500 XT RX Battery Plate

SKU:SKU: 11-081211-0812

Bolt
Mount
Type
Regular price $199.00 USD
Regular price Sale price $199.00 USD

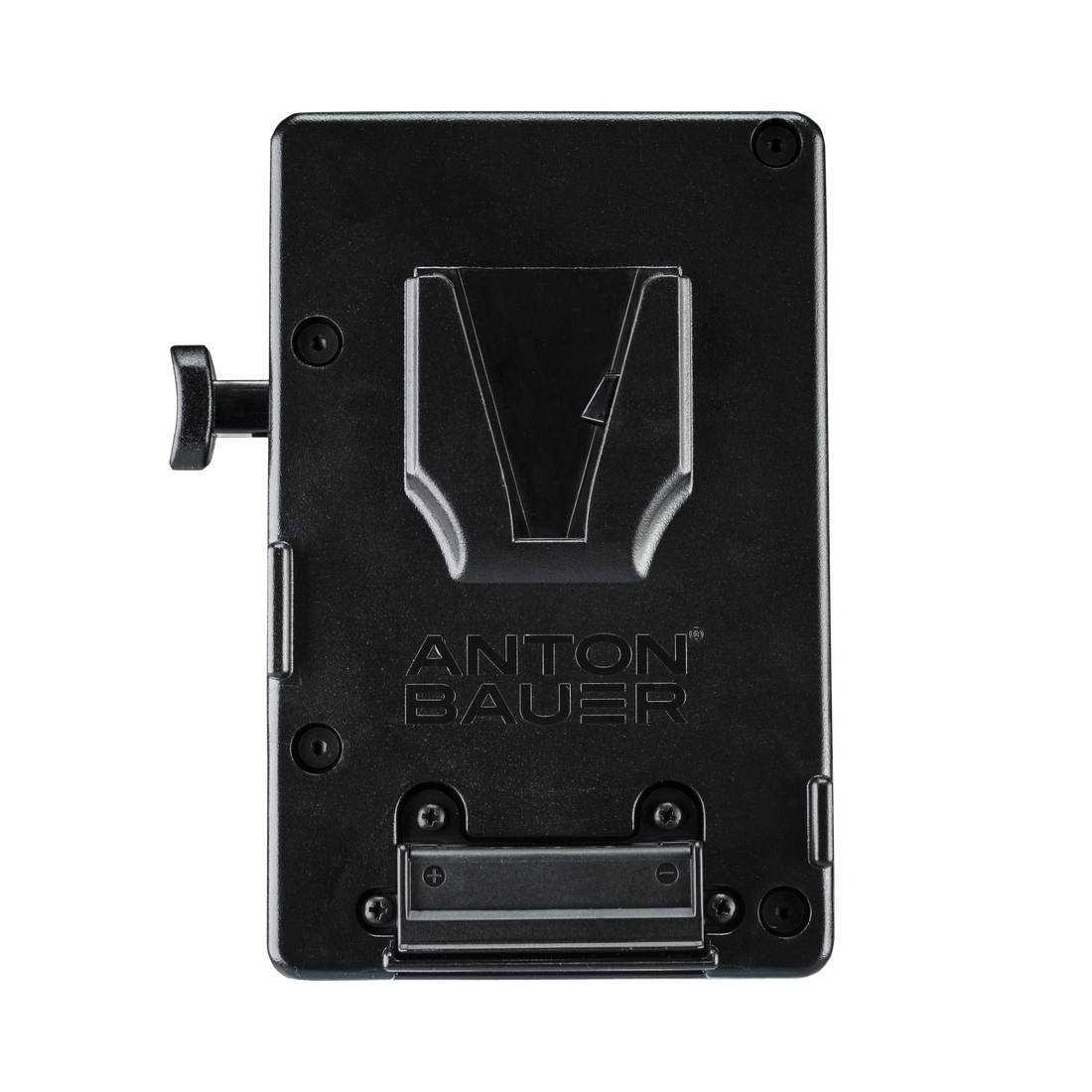

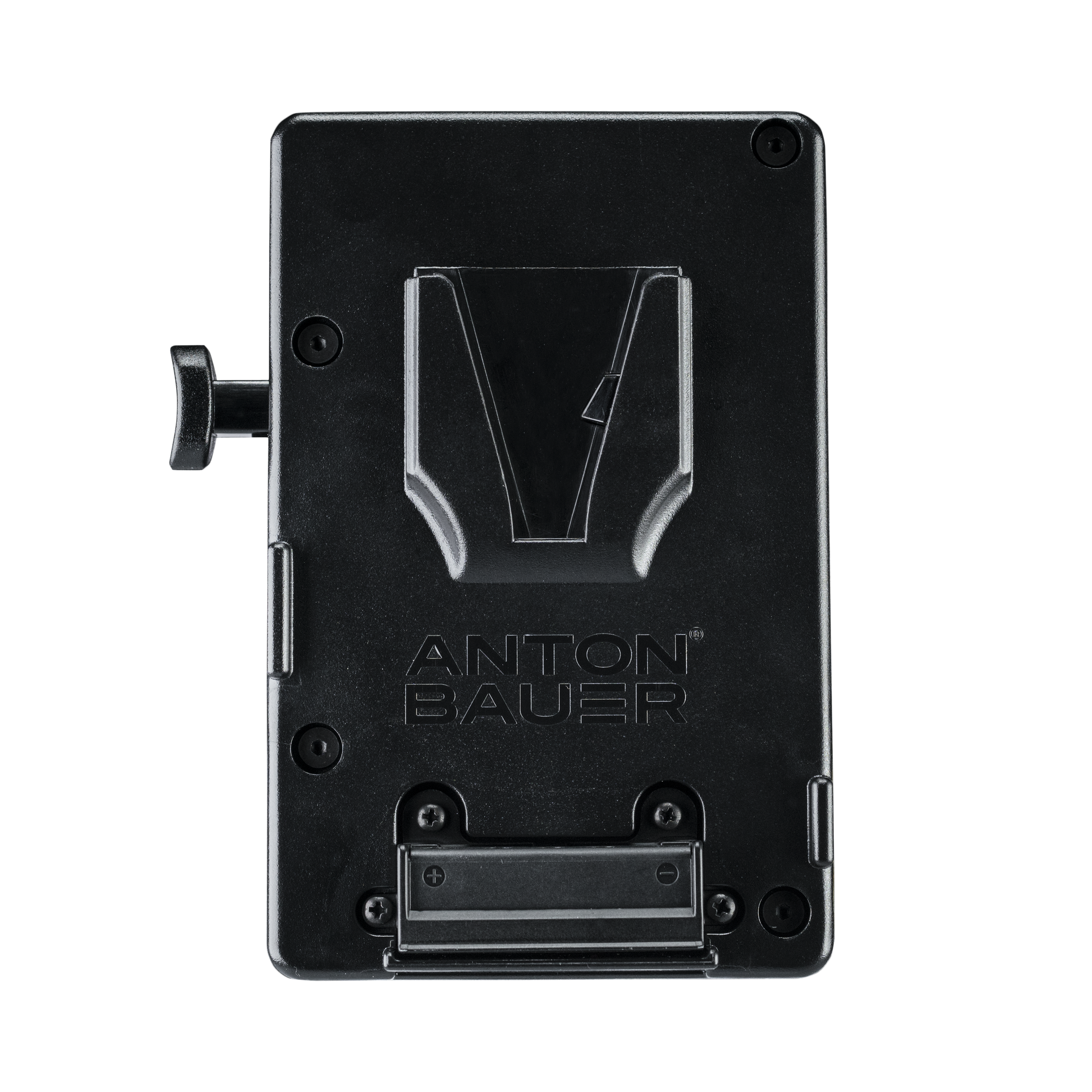

This Single (Female) Battery Plate from Teradek allows you to secure a Gold or V-Mount battery directly to Teradek Bolt 1000 LT, Sidekick XT and 500 XT Receivers and provide power internally. Machine Anondized, with 2 P-Tap outputs can provide power for additional accessories.

Please select which mounting option (Gold or V-Mount) you would like.
Please be aware, there are other battery type plate options available, including Sony L-series and Canon LP-E6.

To install:

  • Position both the receiver and battery plate facing up with the video connectors on the receiver facing right.
  • Remove the cover plate on the receiver to expose the internal JST connector.
  • Place the riser plate in between the receiver and the battery plate so that the holes on the riser plate align with the threaded holes on the receiver.

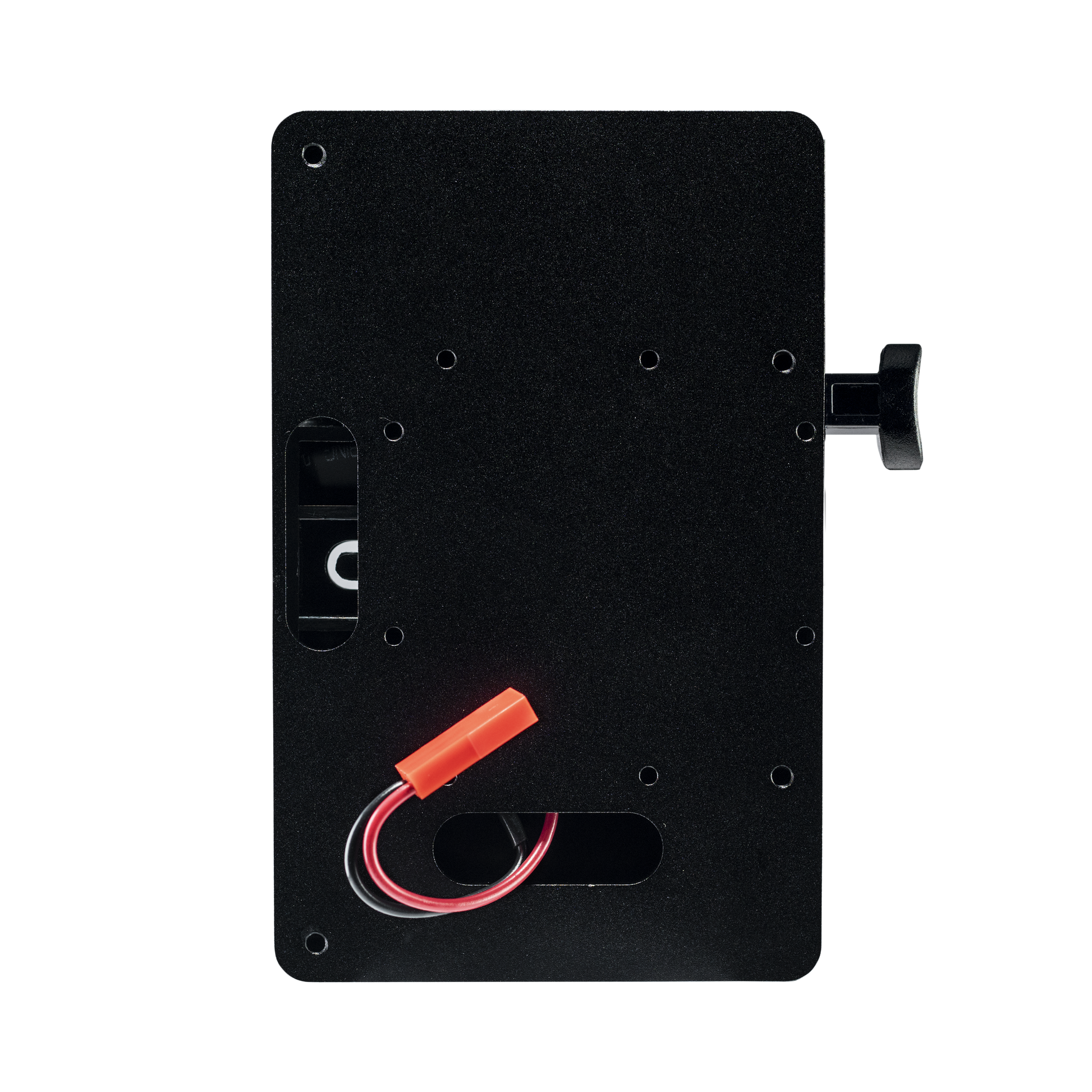

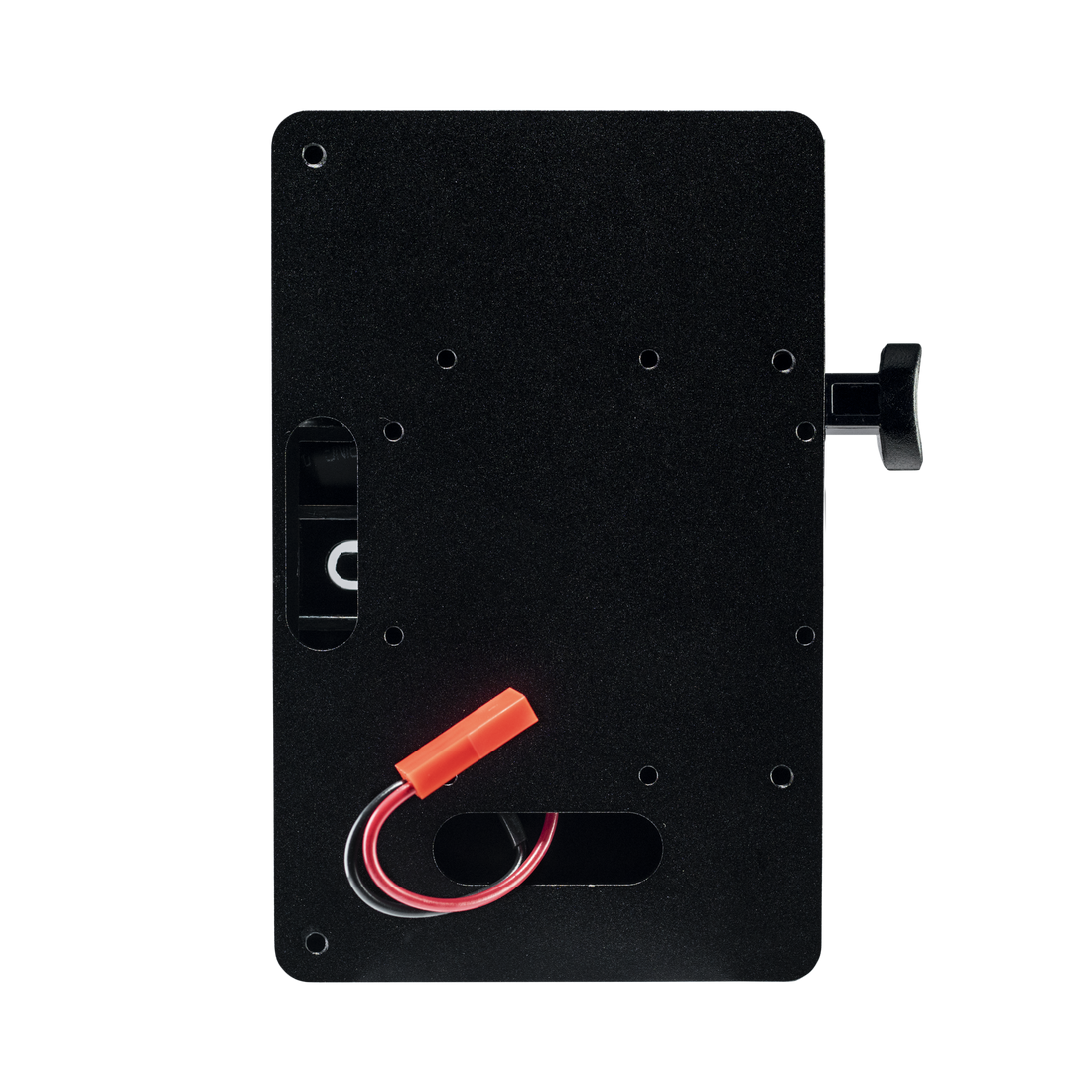

  • Connect the internal connector from the battery plate to the receiver’s internal connector, then insert and tighten the four M2 x 6mm Phillips screws.
  • Insert the M3 x 12mm screws through the battery plate and riser plate, into the receiver.
  • Tighten the screws.

  • 4 x M3x12mm Socket Head Screws
  • 4 x Screw Phillips Head M2 x 6mm
  • 1 x Gold or V-Mount Female Battery Plate
  • 1 x Riser plate
