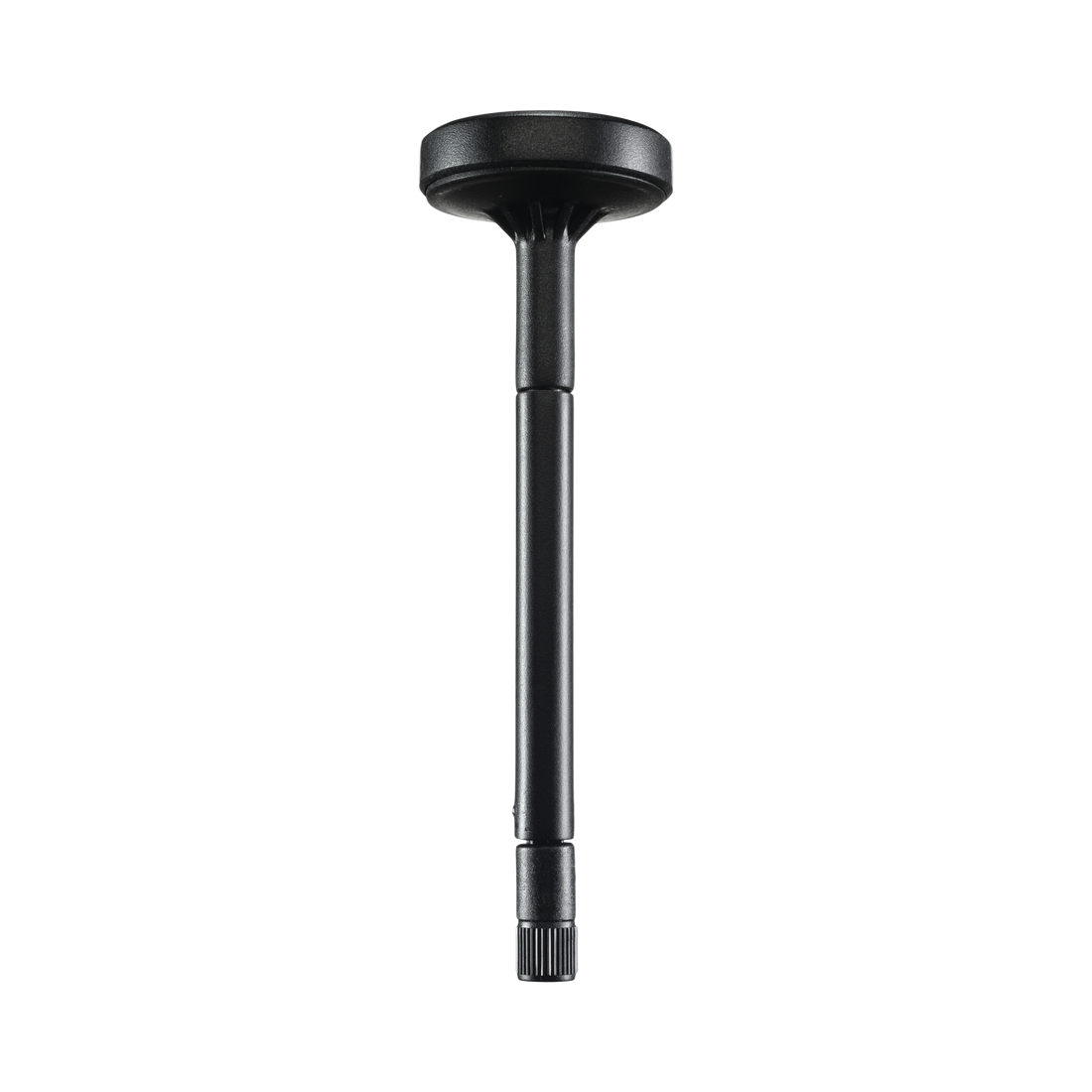

Replacement Bolt 4K Wireless Horizontally Polarized Mushroom ("H" Antennas)

Thank you for your interest in Teradek Products.

We will send you an email when this item is in stock and ready to ship.
description:

Sold as a set of 4 or individually
Meant for Bolt 4K and to be used in with V antennas.

These are designed special horizontally polarized antennas for use with the V antennas. Using a pair of H and a pair of V antennas on the TX improves the diversity characteristics of the system by combining the two perpendicular polarizations. For this H+V antenna configuration, two H antennas should be used at the TX and two at the RX as pictured. This configuration should allow for better reception and better video quality in medium-range situations and/or when the environment will create a lot of reflections for the wireless signal.

The combination of H and V antenna signals achieves better diversity than V antennas alone, especially while shooting outdoors. H antennas cause the RF signal from the transmitter to propagate in a perpendicular manner compared to the vertical signal from the V antenna.



Please refer to this article on antennas configurations
