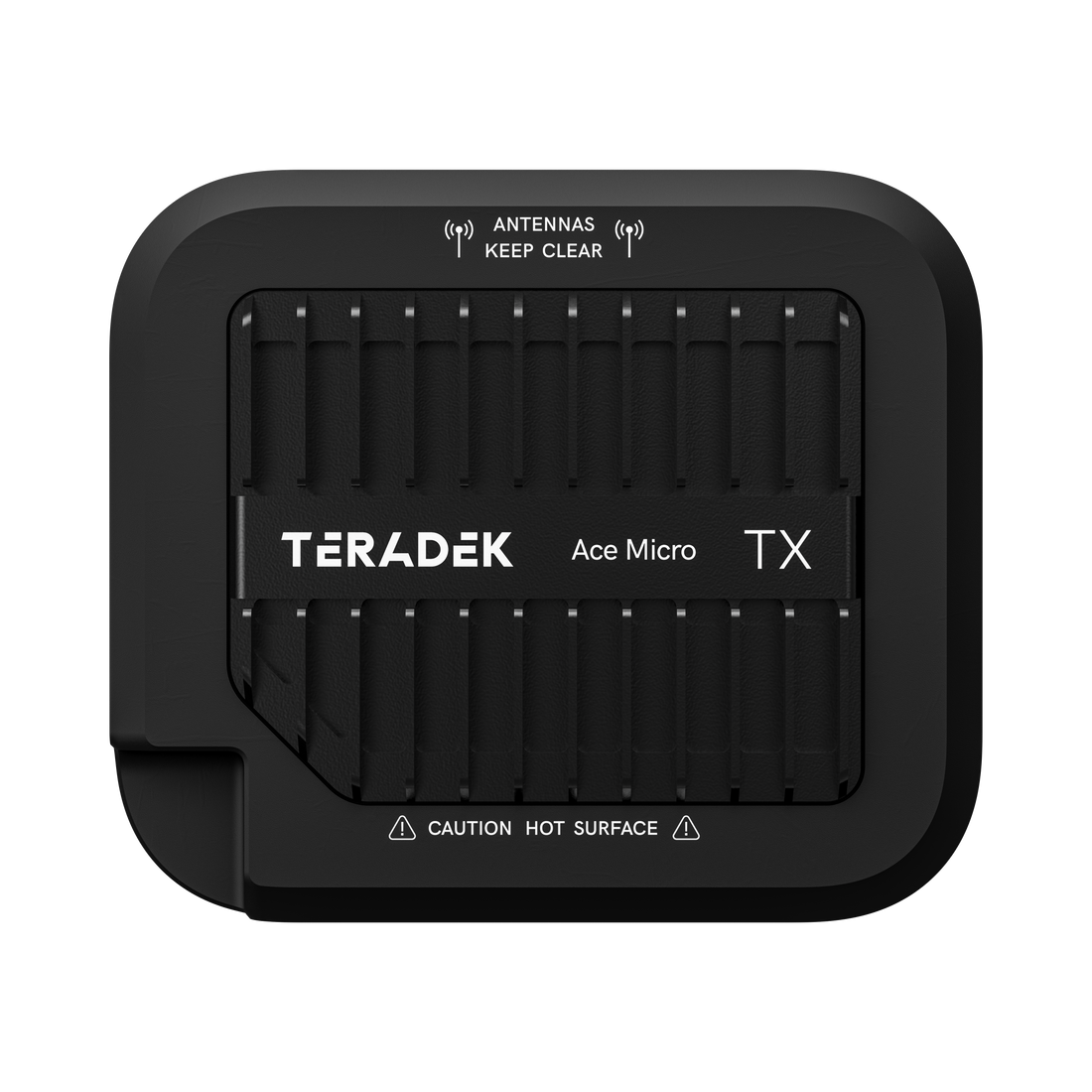

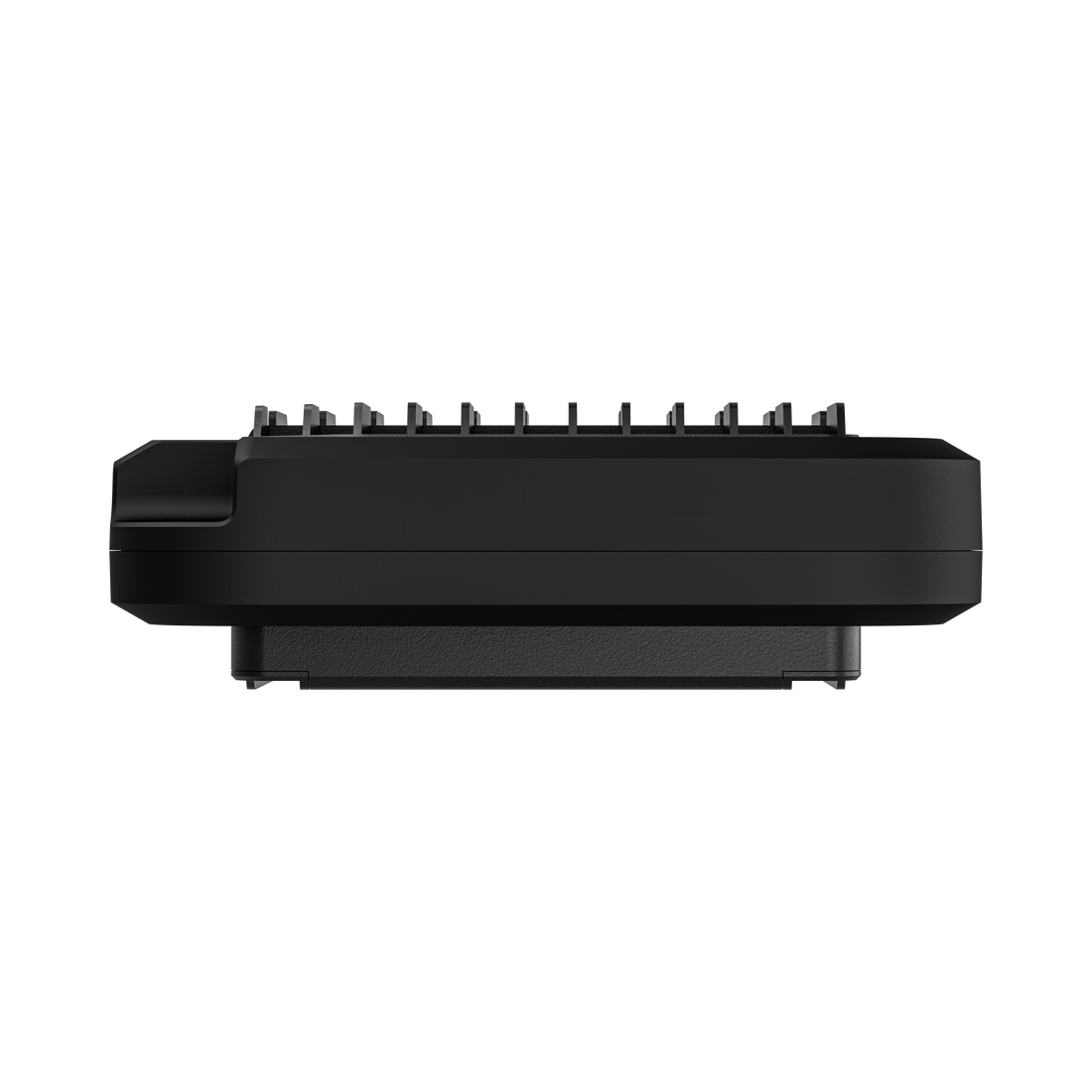

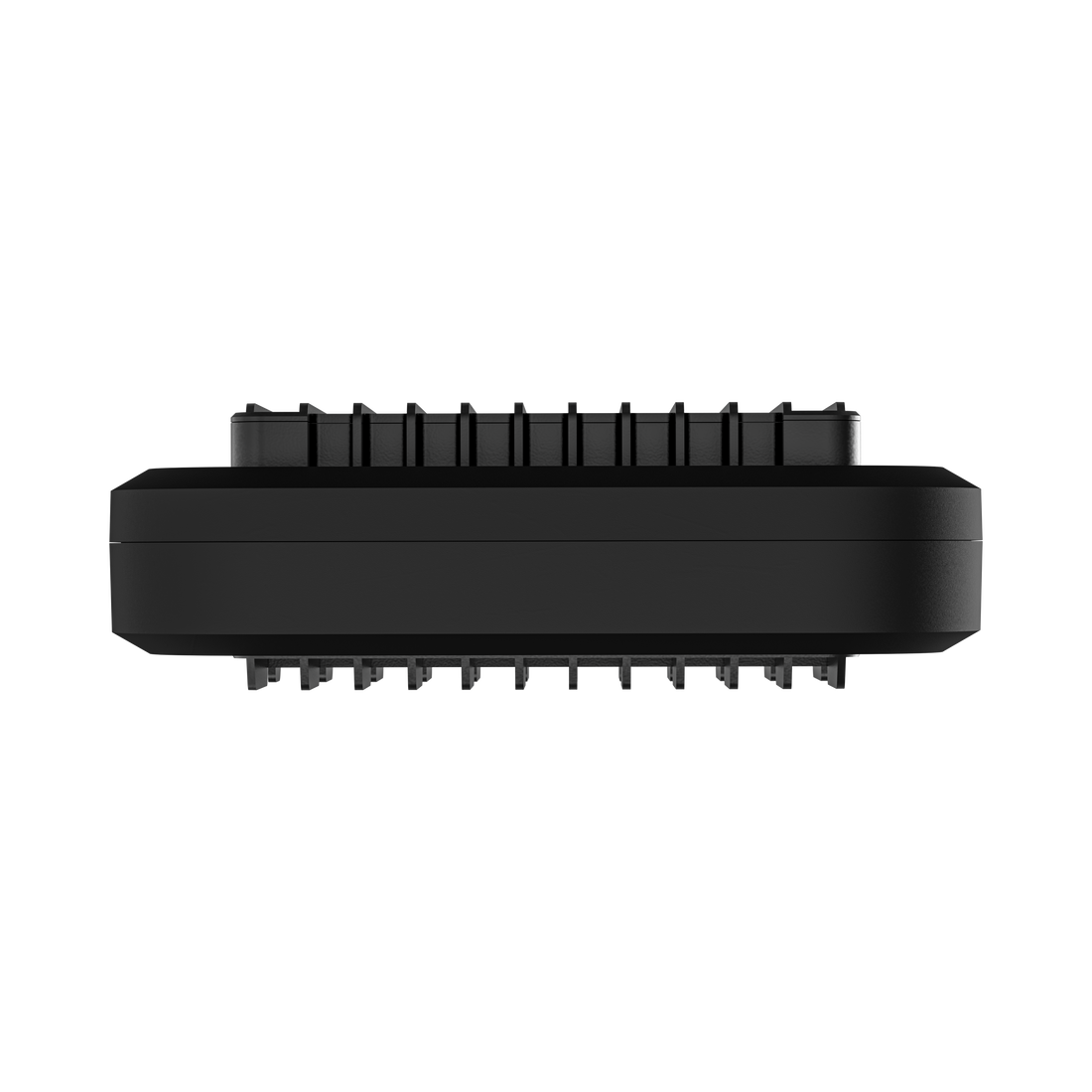

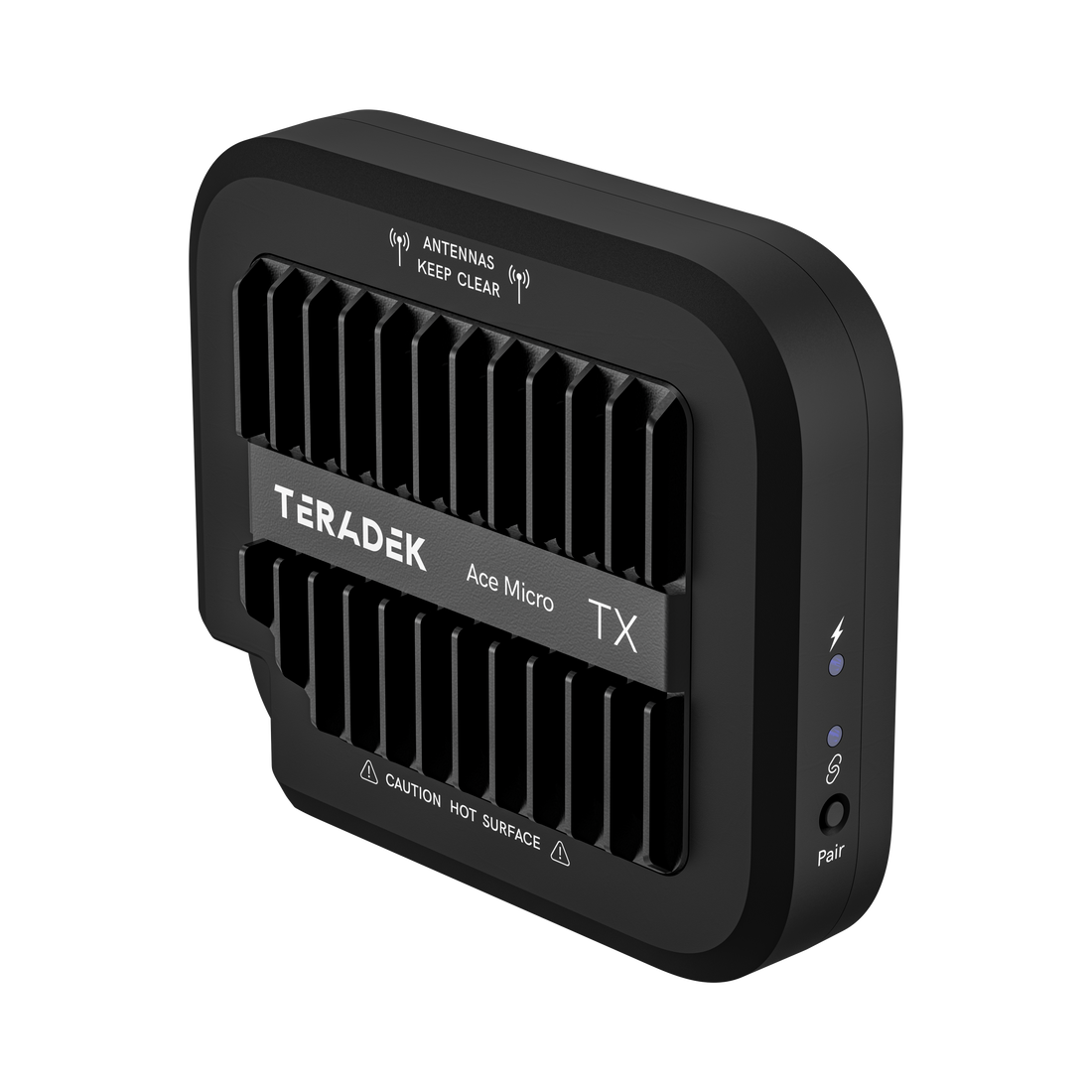

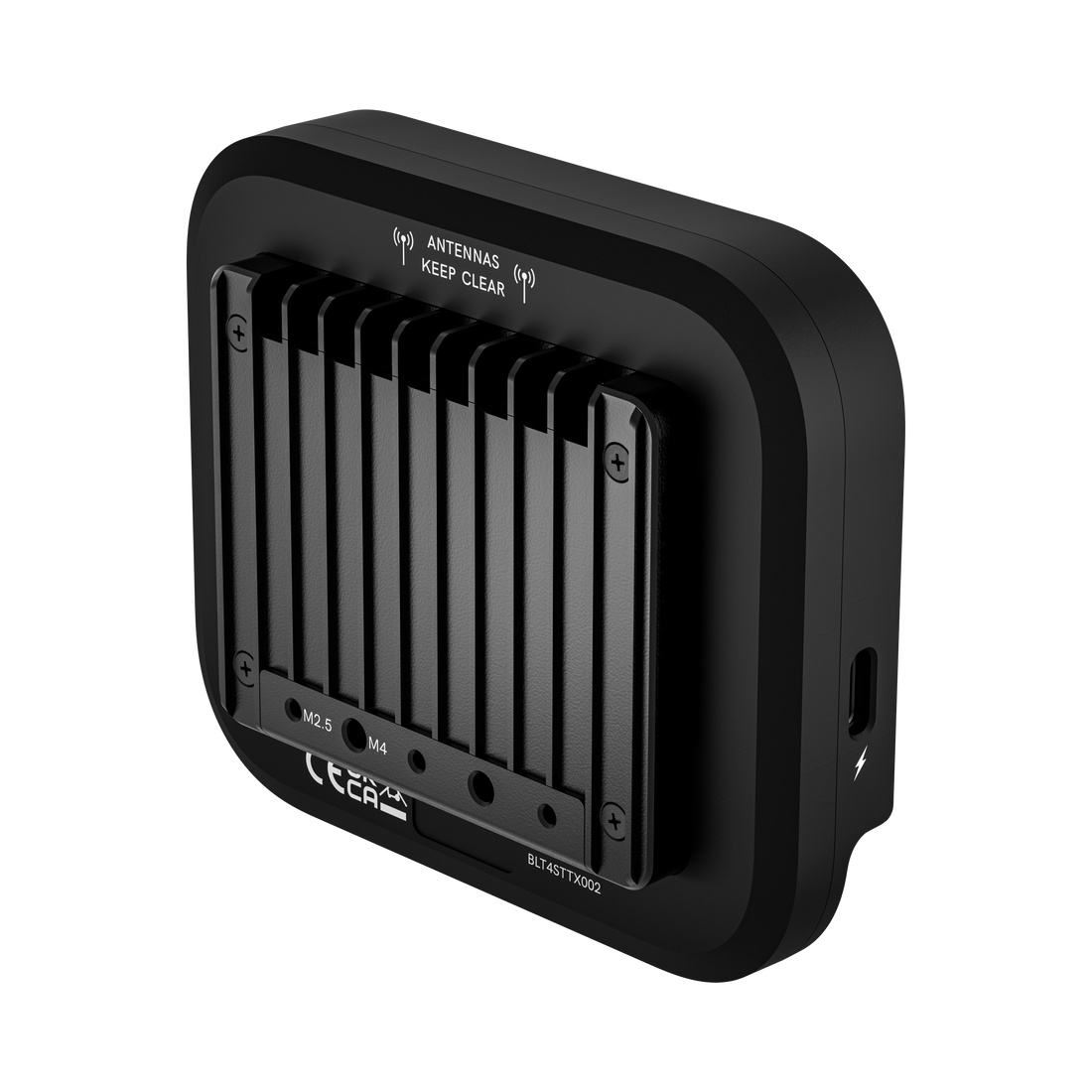

Ace Micro TX

Ace Micro TX is our smallest zero-delay wireless video transmitter yet. Share up to 4Kp30 uncompressed wireless video with up to six RXs at ranges up to 500’ (150m). It is fully cross-compatible with all Bolt 4K, Bolt 6, Bolt 7, and Ace 750 systems thanks to a shared BB3 chipset, which enables operation over 6GHz and 5GHz frequencies and delivers video with less than 1 millisecond of latency—over 70 times less latency than WiFi-based solutions.

Ace Micro TX is designed to support a wide range of zero-delay workflows with a single USB-C connection.

• Connect directly to cameras that support DisplayPort Alt Mode (DP Alt Mode) over USB-C, including Blackmagic URSA Cine and PYXIS, for the most simplified cable management solution available.
• For the first time, Ace Micro TX transforms your iPhone into a professional wireless camera. Simply mount the TX, connect via USB-C, and transmit zero-delay video using your preferred camera app. Seamlessly integrate your iPhone into an existing Teradek wireless video ecosystem. External USB power required.

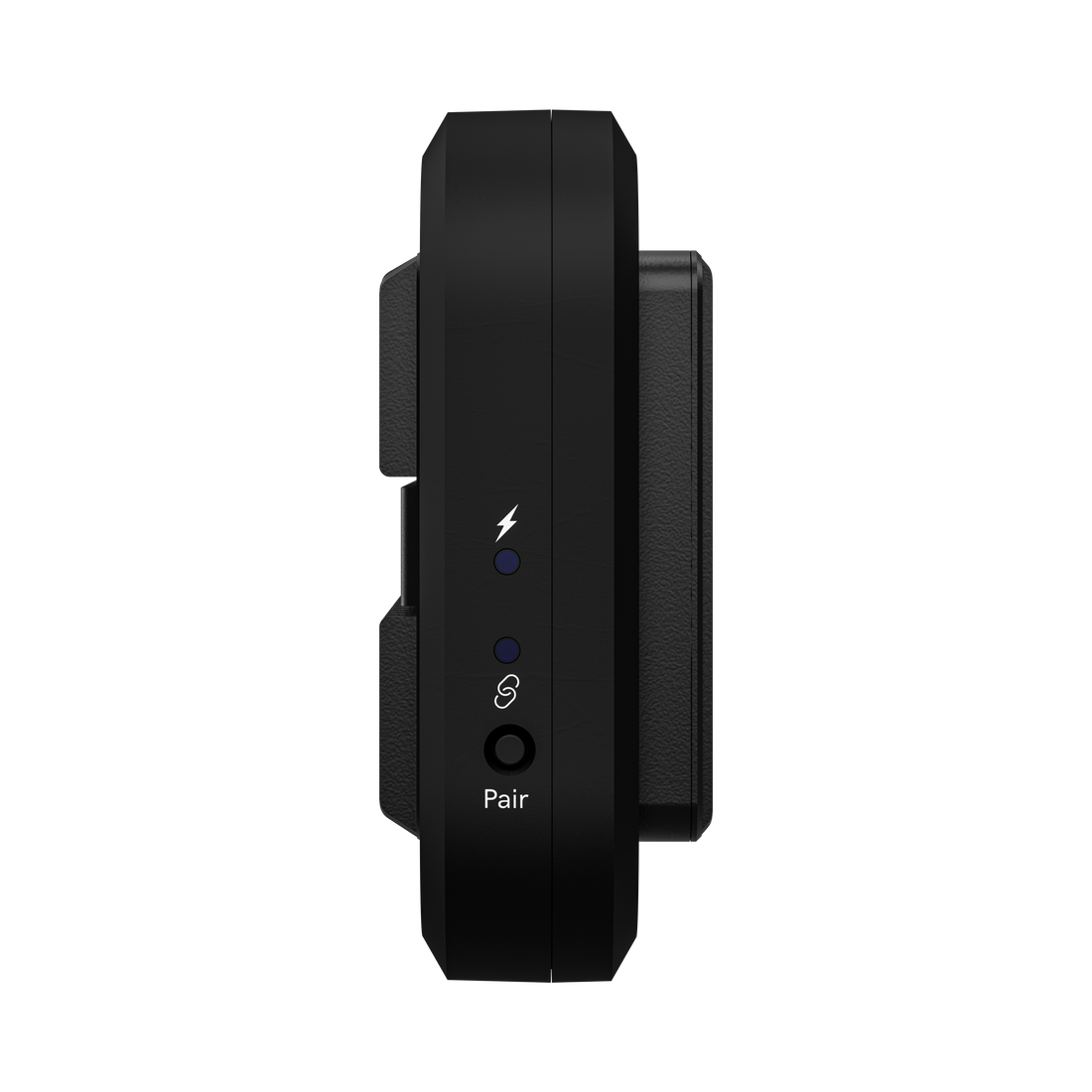

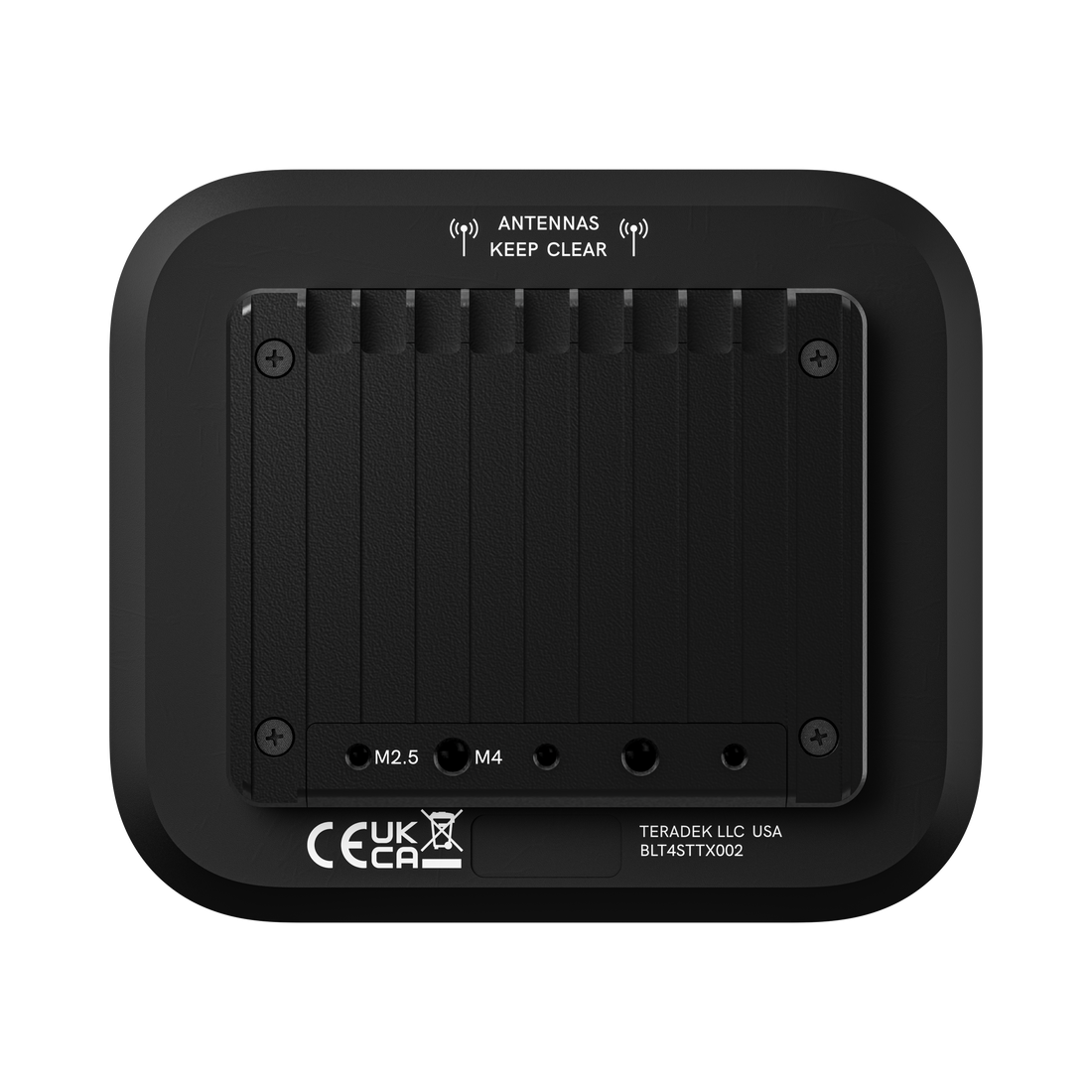

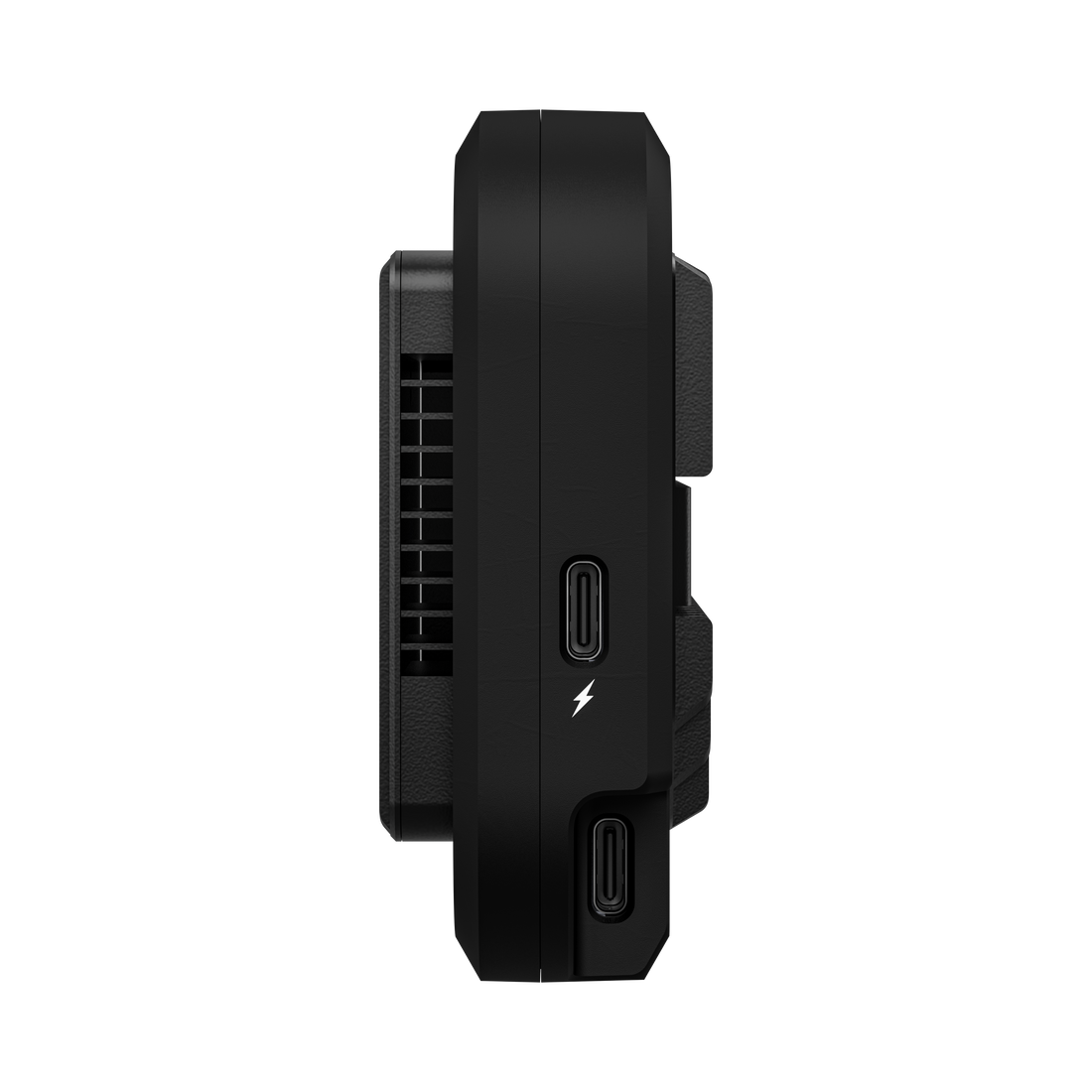

Compact hardware includes internal antennas, a quick-pairing button, and LED indicators for power and link status, M3 and M2.5 mounting points for horizontal or vertical workflows, and a USB-C port that consolidates power, video, and communication into a single cable for a streamlined setup. A secondary USB-C offers an additional, pass through power option. Ace Micro automatically detects and selects the 5Ghz or 6GHz RF channel with the least interference and employs Auto-Frequency Switching to maintain optimal signal quality. Ace Micro meets all radio frequency regulations and comes with the industry’s best encryption and security features.
