Sold Out

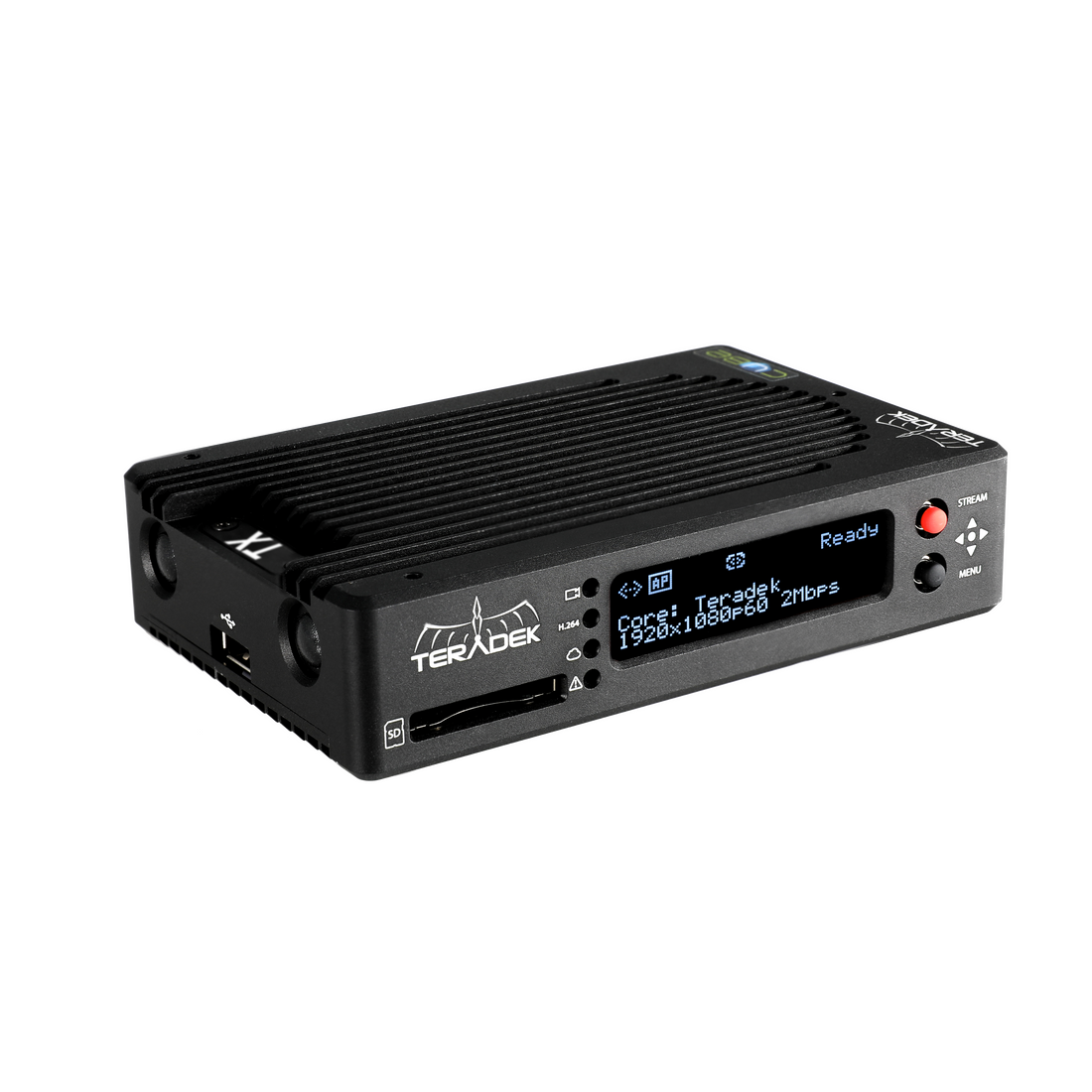

Cube 705 - H.265 (HEVC) and H.264(AVC) Camera Top Encoder - Ethernet Only
SKU:SKU: 10-071510-0715 Copied
- Real-Time H.265(HEVC) and H.264(AVC) Encoder

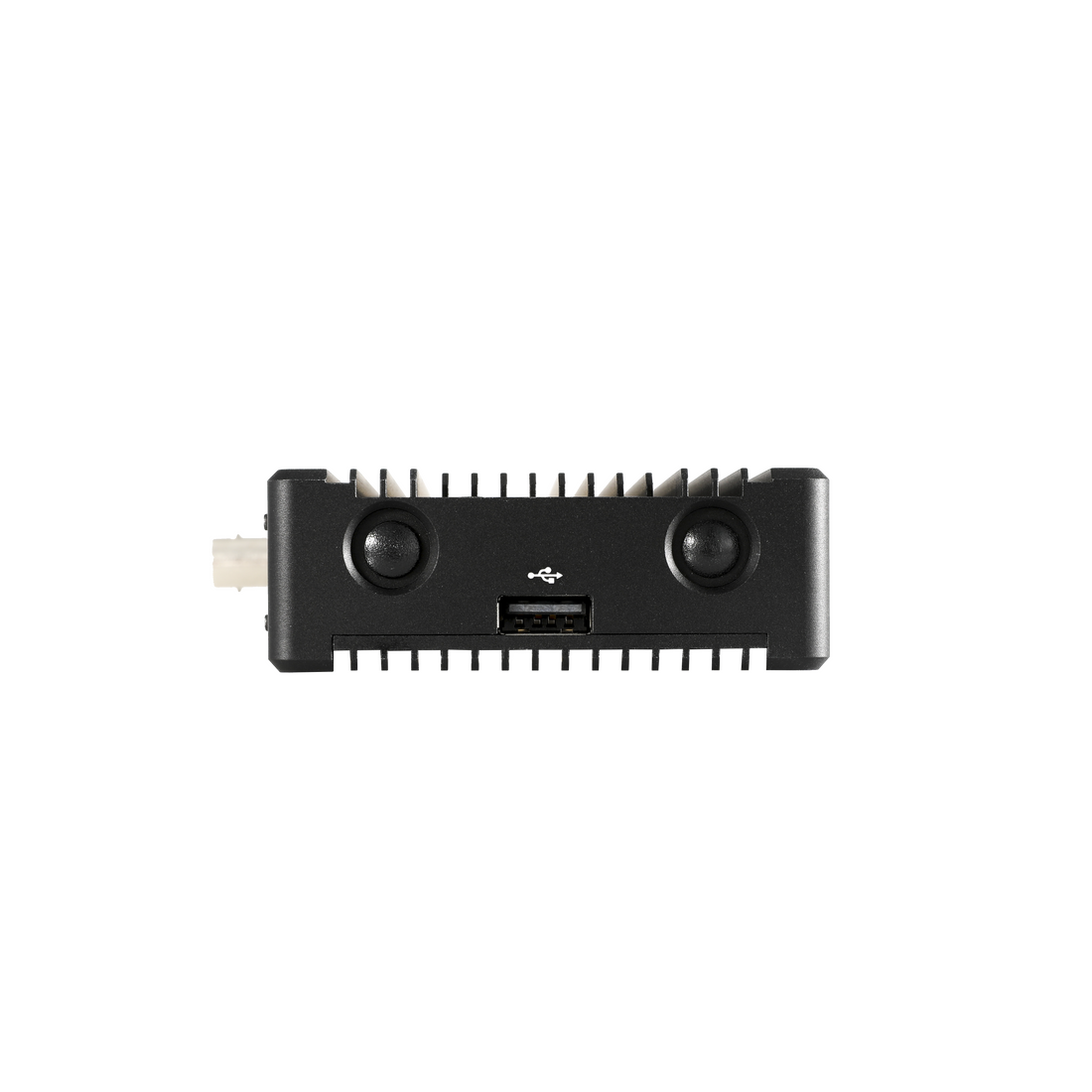

- Ethernet and USB Interfaces (No WiFi)

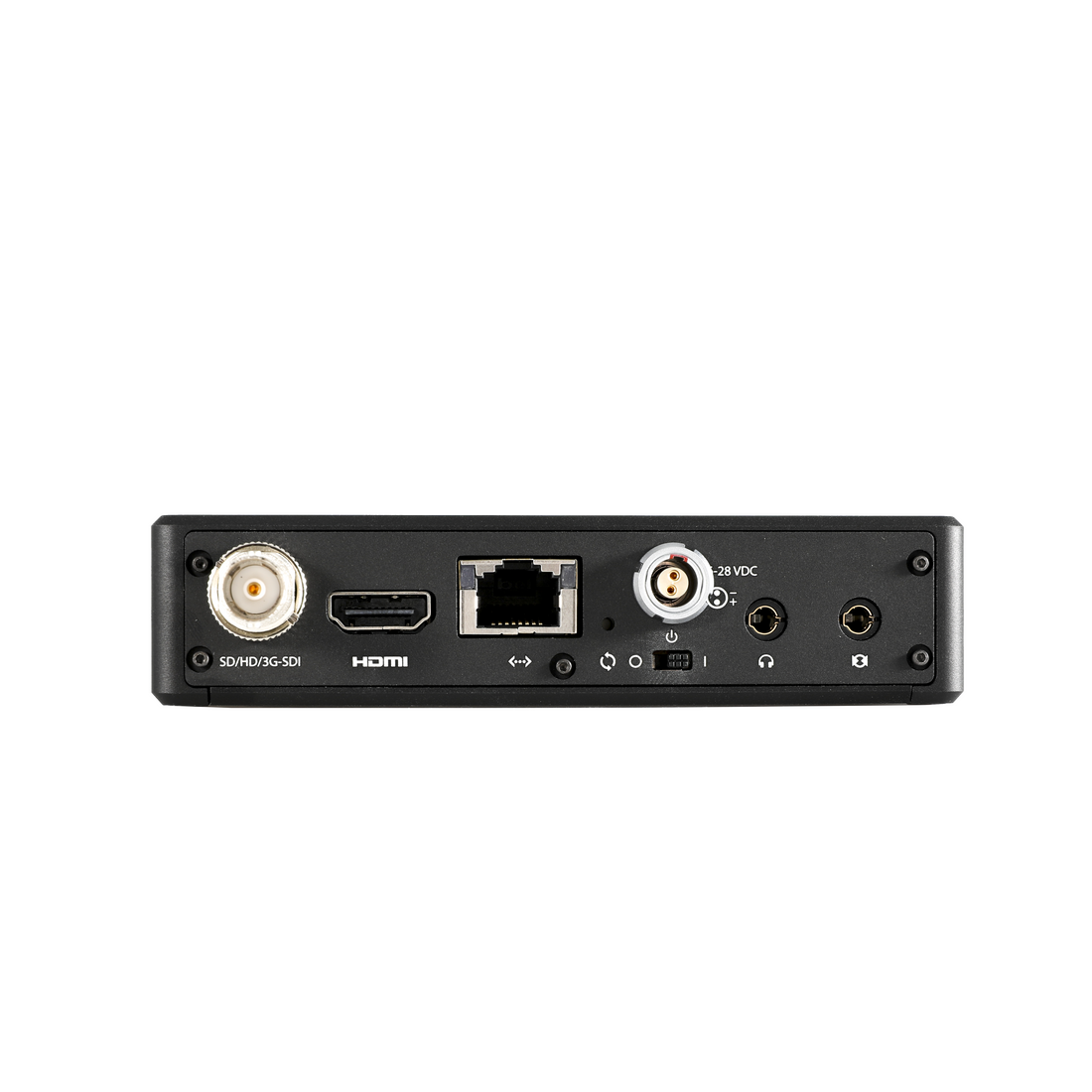

- HDMI and SDI Video Inputs
- Camera Top Form Factor
- Built-In Color Grading
- On-Board SD Card Recording
- Two-Pin LEMO-Type Power Input
Couldn't load pickup availability
This product is discontinued. Explore Prism to view Teradek’s flagship encoder & decoder line.
What is HEVC?
HEVC, also known as H.265, is a next-generation compression standard that offers a number of enhancements over H.264. Compared to AVC (H.264) compression, HEVC is 50% more efficient, which translates into maintaining the same video quality at half the bitrate or double the video quality at the same bitrate.
What makes HEVC Cube unique?
• Can use both HEVC (H.265) and AVC (H.264) High Profile compression
• Compatible with Core transcoding engine. This allows you to take advantage of HEVC encoding when streaming to Core, while delivering your content in AVC to your destination.
• Dual input (HDMI + 3G-SDI)
• Compatible with the new Bond expansion module, allowing you to turn your Cube 700 series into a professional bonding solution
• GigE and 2.4 / 5Ghz 802.11ac WiFi built-in
• Bitrate support up to 30Mbps
• Streaming resolution support up to 1080p60
• Compatible with T-21, Sencore, and Vitec HEVC decoders
• Uses just 6W of power
What can the Cube codecs do?
• Stream to any online video platform, such as Facebook, Youtube, Twitch, Periscope, and more. Comprehensive protocol support: MPEG-TS, RTSP, RTMP, HLS, TDS
• Monitor your live video feed on an iOS device for confidence or local configuration
• Turn your camera into a wireless video feed for Teradek’s Live:Air iOS switcher application
For Newtek NDI® | HX (Network Device Interface High Efficiency Mode) compatibility, choose Teradek NDI license.
Teradek NDI License
The Teradek NDI license is an NDI | HX high performance streaming protocol add-on for the Cube 755 or Cube 705. NDI allows anyone to use real-time, ultra low-latency video on existing IP video networks and will be accessible as a protocol on your device once the license is purchased and activated.
NDI is a registered trademark of NewTek, Inc.
- 1 x Cube 705
- 1 x Ethernet Cable
- 1 x HDMI Male Type A (Full) - HDMI Male Type A (Full) 18in Cable
- 1 x SDI - BNC to BNC Cable, 10in
- 1 x PSU 2pin Conn to 18W AC Adapter (Int) - 6ft
Expect high quality devices that have been repaired and tested to meet our stringent quality standards.
Refurbished may show signs of gentle use and imperfections and include a limited 14-day return policy and 90-day limited hardware warranty.
B-Stock items are unused and carry the same return and warranty policies as A-Stock, including a 30-day return and 12-month limited warranty.
We offer free ground shipping on all orders above $500 within the United States
30-Day Hassle Free Returns
Technical Specs
