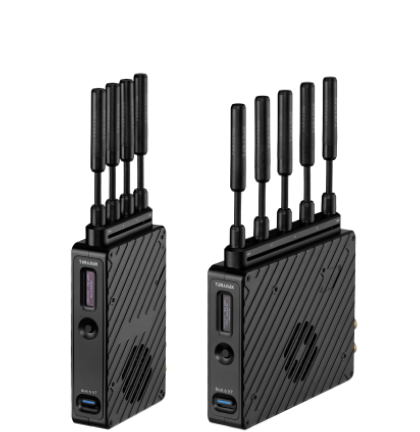

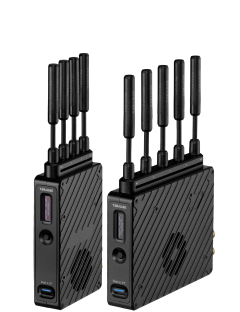

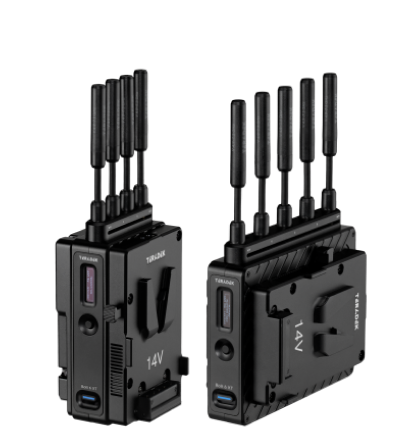

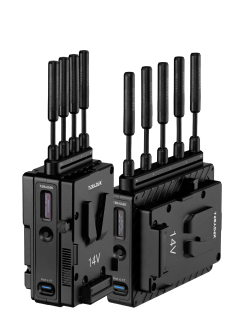

Bolt 6 XT
Bolt 6 XT
Premium Features.
Unrivaled Connectivity.
The Full 4K Solution.
Premium Features.
Unrivaled Connectivity.
The Full 4K Solution.
Zero-delay wireless video with 6GHz
connectivity, plus cross-
compatibility with
the Bolt
4K Series. 12G-SDI + HDMI for
DCI 4K
resolution in 10-bit 4:2:2 HDR;
wireless camera control, and more.
Zero-delay wireless video with 6GHz
connectivity, plus cross-
compatibility with
the Bolt
4K Series. 12G-SDI + HDMI for
DCI 4K
resolution in 10-bit 4:2:2 HDR;
wireless camera control, and more.
Maximum range
Maximum range
Added 6GHz channels.
Up to 5000ft of range.
Added 6GHz channels.
Up to 5000ft of range.
12G-SDI &
4K HDMI Support
12G-SDI &
4K HDMI Support
12G-SDI + 4K HDMI
supports DCI 4K
12G-SDI + 4K HDMI
supports DCI 4K
Secure. Safe. Legal.
Secure. Safe. Legal.
Enhanced DFS and
AES-256 encryption.
Fully FCC/CE
compliant.
Enhanced DFS and
AES-256 encryption.
Fully FCC/CE
compliant.
Unprecedented Control
Unprecedented Control
Manage signal quality,
LUT output, and more in
the Bolt App.
Manage signal quality,
LUT output, and more in
the Bolt App.
Extended Workflow
Extended Workflow
Unlock camera control.
Pass timecode, filename,
and metadata.
Unlock camera control.
Pass timecode, filename,
and metadata.
CROSS COMPATIBLE
CROSS COMPATIBLE
Connects to all Bolt 6 and
Bolt 4K Devices.
Connects to all Bolt 6 and
Bolt 4K Devices.
Full 12G-SDI Pipeline
Full 12G-SDI Pipeline
The most advanced wireless transmitters in the world.
True zero-delay uncompressed 4K workflows.
The most advanced wireless transmitters in the world.
True zero-delay uncompressed 4K workflows.
6GHz Connectivity
6GHz Connectivity
More frequencies than ever to find the best
option in challenging RF environments.
More frequencies than ever to find the best
option in challenging RF environments.
Powerful Video
Processing
Powerful Video
Processing
Up/Down Video Scaling, 3D LUTs, Frame-Rate
Conversion, SDI Eye Pattern Tool.
Up/Down Video Scaling, 3D LUTs, Frame-Rate
Conversion, SDI Eye Pattern Tool.
More Channels, Less Interference
More Channels, Less Interference
A Breath of
Fresh Airwaves
A Breath of
Fresh Airwaves
Bolt 6 adds 12 new 6GHz channels to the standard 5GHz options.
When searching for the perfect channel with no
interference, this
doubles the total number of frequencies you can choose from.
The more frequencies you have, the
better your signal.
Bolt 6 adds 12 new 6GHz channels to the standard 5GHz options.
When searching for the perfect channel with no
interference, this
doubles the total number of frequencies you can choose from.
The more frequencies you have, the
better your signal.
Pair with any Bolt 4K or Bolt 6
Pair with any Bolt 4K or Bolt 6
4K HDR Wireless Video with
Unrivaled Compatibility
4K HDR Wireless Video with
Unrivaled Compatibility
Customize Your Build
Customize Your Build
Antennas For
Every
Production
Environment
Antennas For
Every
Production
Environment
Bolt’s ecosystem offers different calibrated antenna
options for diversifying your RF signal,
helping you
maintain the strongest image quality possible, while
also giving you the
flexibility to build solutions that
work best for your setup.
Bolt’s ecosystem offers different calibrated antenna
options for diversifying your RF signal,
helping you
maintain the strongest image quality possible, while
also giving you the
flexibility to build solutions that
work best for your setup.
Vertically
Polarized Antennas
Vertically
Polarized Antennas
The longest range and most
affordable option.
The longest range and most
affordable option.
- External Mounting
- Omnidirectional
- Use by themselves or with other antennas
- Ranges up to 5000ft
Horizontally
Polarized Antennas
Horizontally
Polarized Antennas
Use with V Antennas to
increase signal robustness.
Use with V Antennas to
increase signal robustness.
- External Mounting
- Omnidirectional
- Use in combination with V antennas
- Ranges up to 3000ft

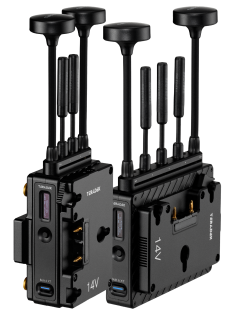

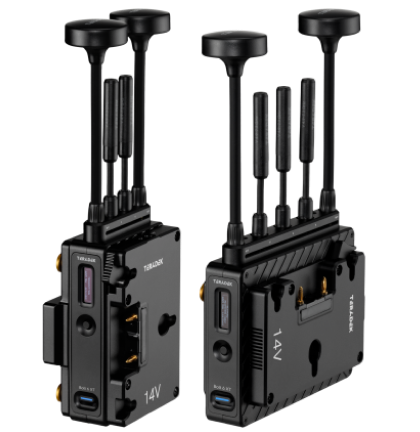

Directional
Array Antenna
Directional
Array Antenna
Aim your RF signal to avoid
physical obstructions.
Aim your RF signal to avoid
physical obstructions.
- External Mounting
- Directional: Point Array toward TX
- Configurable with V or H Antennas
- Ranges up to 5000ft
Internal Antennas
Internal Antennas
The Bolt 6 LT and Monitor Module models
feature
permanent built-in internal antennas
that are 75%
shorter than external antenna
models, helping you
streamline your camera
rig and/or director’s monitor
and safeguard
against damage and misalignment.
The Bolt 6 LT and Monitor Module models
feature
permanent built-in internal antennas
that are 75%
shorter than external antenna
models, helping you
streamline your camera
rig and/or director’s monitor
and safeguard
against damage and misalignment.
- Built into specific Bolt 6 Models
- Omnidirectional, 360 degree
signal coverage - Use with any Bolt 4K or Bolt 6 device,
internal or external - Range of 750ft
Unlock the Possibilities
Unlock the Possibilities
Wireless Camera
Control with
SmallHD
Wireless Camera
Control with
SmallHD
Teradek’s Bolt 6 XT Transmitters come with an
integrated 5-pin
USB connector for effortless
pairing with SmallHD Smart 7
Monitors, allowing
you to wirelessly control RED®, ARRI, and Sony
VENICE cameras at a range of up to 5000+ft.
Control
start/stop,
ISO, white balance, and more.
Teradek’s Bolt 6 XT Transmitters come with an
integrated 5-pin
USB connector for effortless
pairing with SmallHD Smart 7
Monitors, allowing
you to wirelessly control RED®, ARRI, and Sony
VENICE cameras at a range of up to 5000+ft.
Control
start/stop,
ISO, white balance, and more.
And So Much More
And So Much More
New SDI Eye Pattern Tool
New SDI Eye Pattern Tool
This new feature helps you troubleshoot
SDI
signal quality on the device or in the
Bolt
Manager App.
This new feature helps you troubleshoot
SDI
signal quality on the device or in the
Bolt
Manager App.
Maximum Security
Maximum Security
AES-256 encryption and RSA 1024 key
pairing prevents unauthorized access to
your
wireless video feed.
AES-256 encryption and RSA 1024 key
pairing prevents unauthorized access to
your
wireless video feed.
Manage Bolt with Your Phone
Manage Bolt with Your Phone
The Bolt Manager App for iOS & Android
enables TX/RX pairing over 5GHz and
6GHz
channels, LUT output control, and
wireless
signal monitoring.
The Bolt Manager App for iOS & Android
enables TX/RX pairing over 5GHz and
6GHz
channels, LUT output control, and
wireless
signal monitoring.
Long-Range Image Quality
Long-Range Image Quality
A new algorithm enables Longer Distance
Mode that now offers better 4K image
quality
at distances over 2000 ft.
A new algorithm enables Longer Distance
Mode that now offers better 4K image
quality
at distances over 2000 ft.
Compare
Bolt 6 Models
Available Ranges
Available Ranges
750 ft / 1500 ft / 5000+ ft
750 ft / 1500 ft / 5000+ ft
750 ft / 1500 ft
Maximum SDI Resolution
Maximum SDI Resolution
4096 x 2160p60
1920 x1080p60
Maximum HDMI Resolution
Maximum HDMI Resolution
4096 x 2160p60
3840 x 2160p30
3840 x 2160p30
Maximum Color
Maximum Color
SDI: 4:2:2 YCbCr
10-bit
HDMI: 4:4:4 RGB
8-bit
SDI: 4:2:2 YCbCr
10-bit
HDMI: 4:4:4 RGB
8-bit
HDMI: 4:4:4 RGB
8-bit
Zero-Delay
Zero-Delay
6GHz Support
6GHz Support
Receiver Connectivity
Receiver Connectivity
6/Unlimited*
6/Unlimited*
6
SmallHD Wireless Camera
Control Port
SmallHD Wireless Camera
Control Port
Built-in 5pin USB
Requires Adaptor
Compatible with Bolt 4K
Compatible with Bolt 4K
Internal Antennas
Internal Antennas
750 Transmitter / 750 Receiver
750 Receiver
* Unlimited receiver connectivity
requires
the Bolt 6 XT/LT MAX model
