Bolt 4K Monitor Module RX for SmallHD Smart 7 Monitors

For the latest Bolt generation see Bolt 6.

Recipient of Scientific and Engineering Award from the Academy of Motion Picture Arts and Sciences. Learn More.


The Bolt 4K RX Monitor Module is a real time wireless video receiver that supports video signals up to 4Kp30 over at a line-of-sight distance of up to 750ft (228m) with no image latency that integrates directly with the SmallHD Smart 7 Monitor Series. Key features include increased range, faster reconnection times, easier setup with Bluetooth App for iOS or Android, and more stable connectivity. This device is cross-compatible with the entire Bolt 4K Family. Featuring a V-Mount Battery Plate for power.

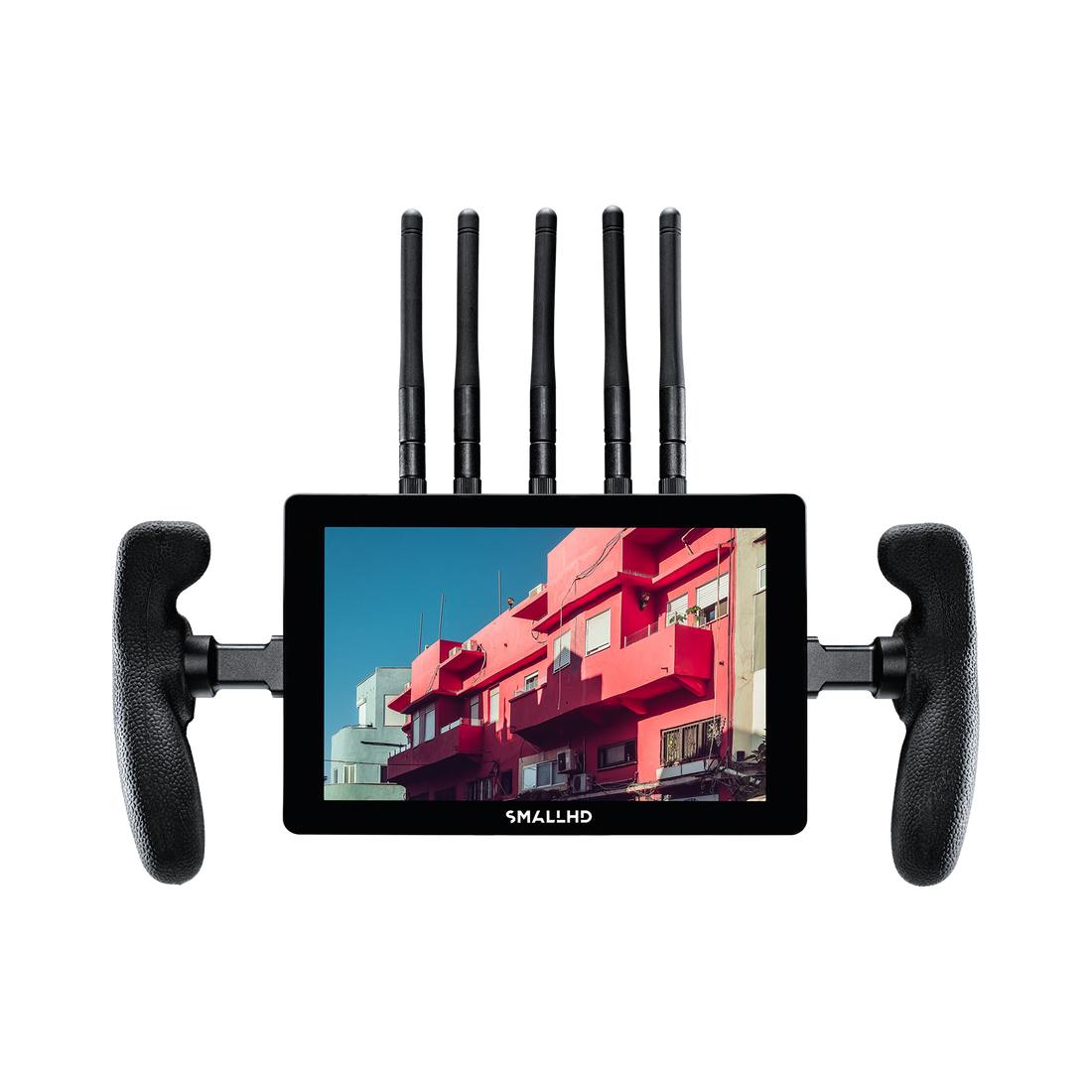

Integrated Hardware Addition to SmallHD Smart 7 Touchscreen Monitors

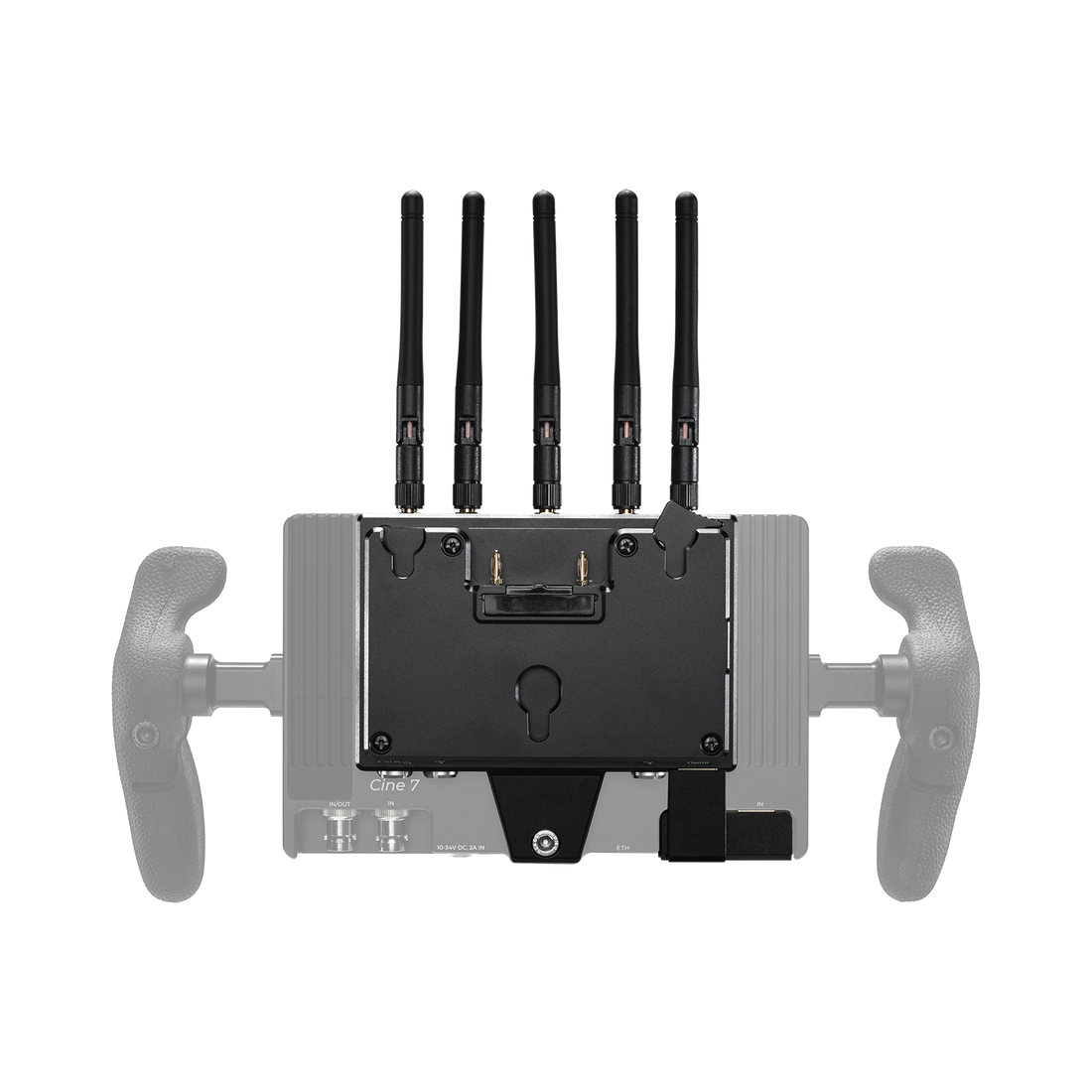

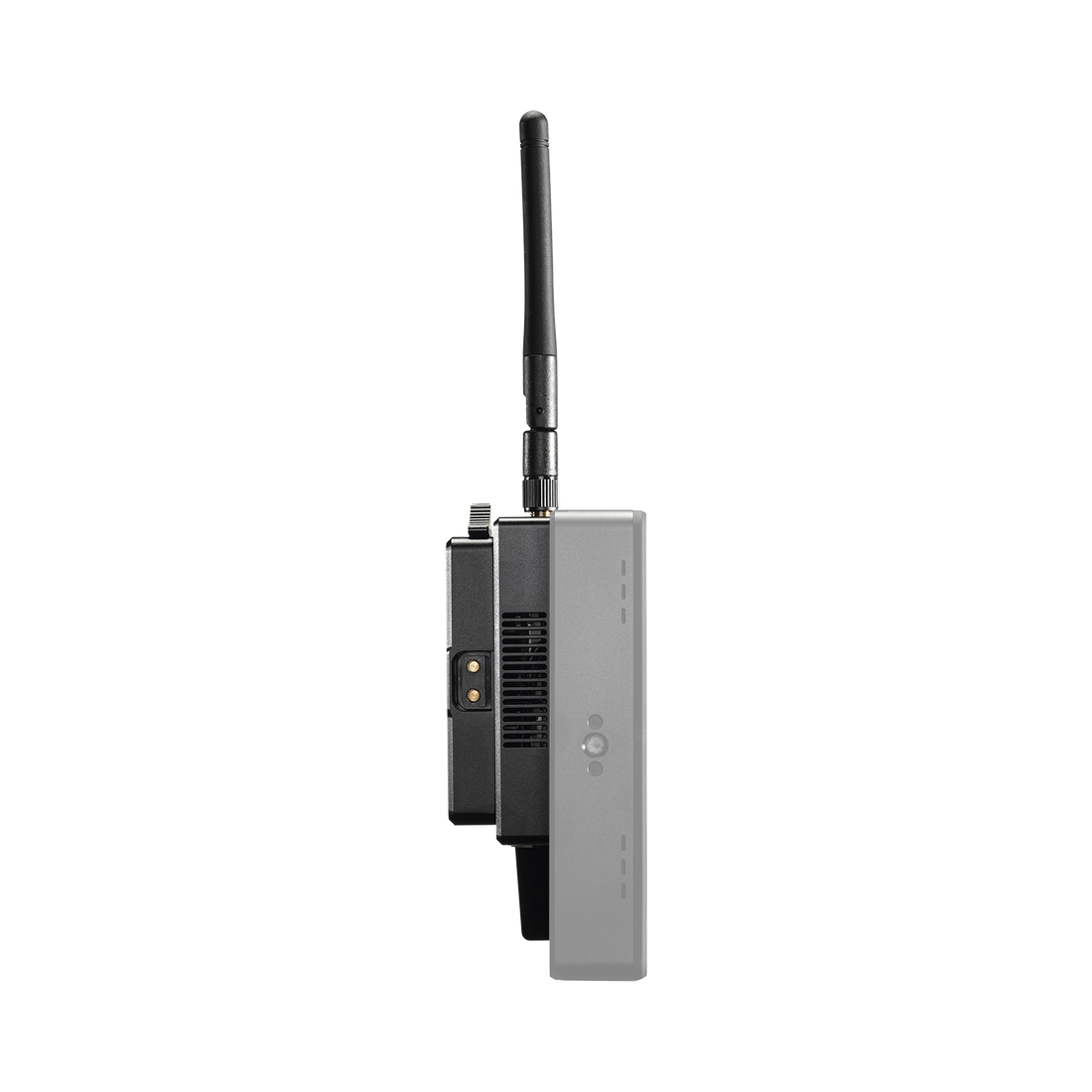

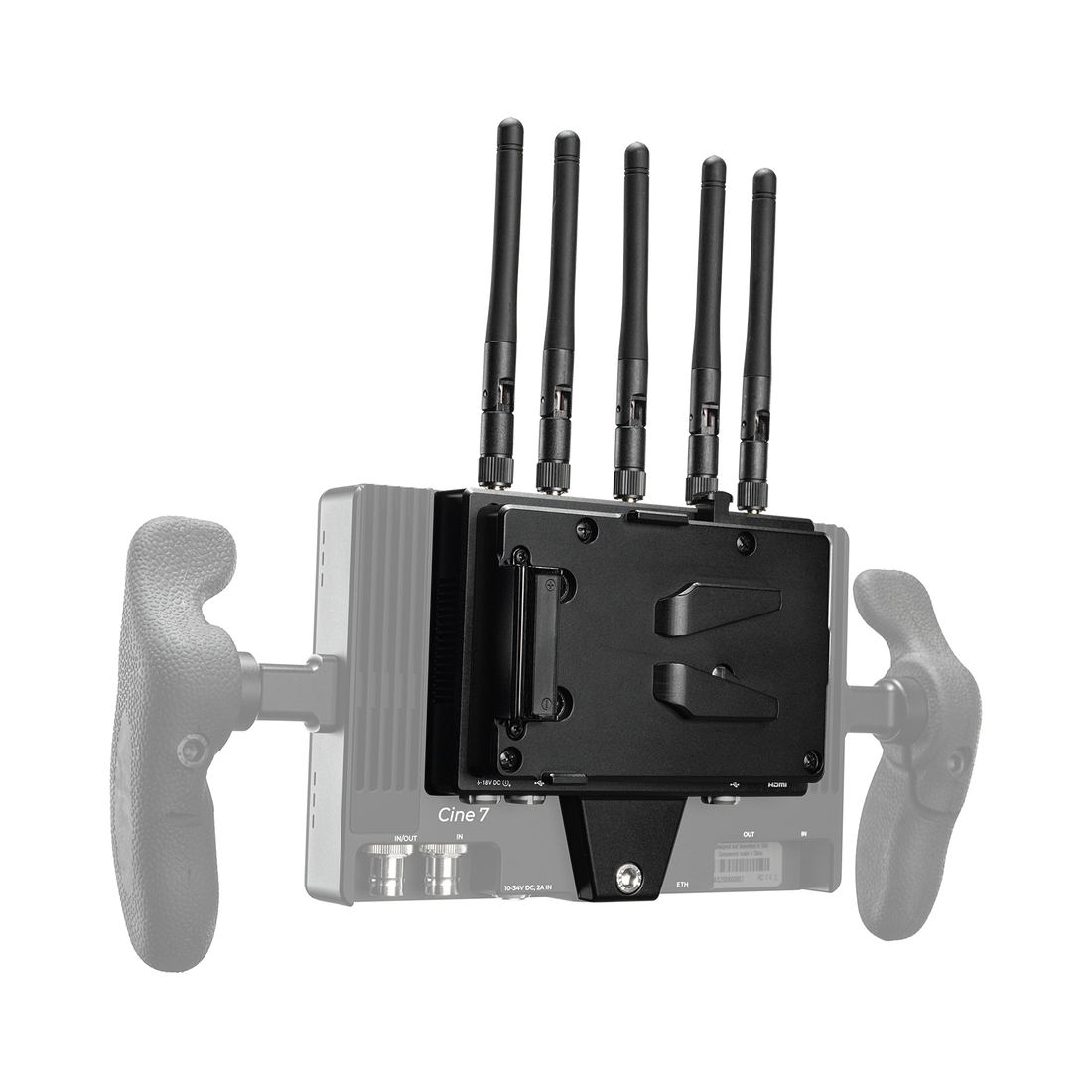

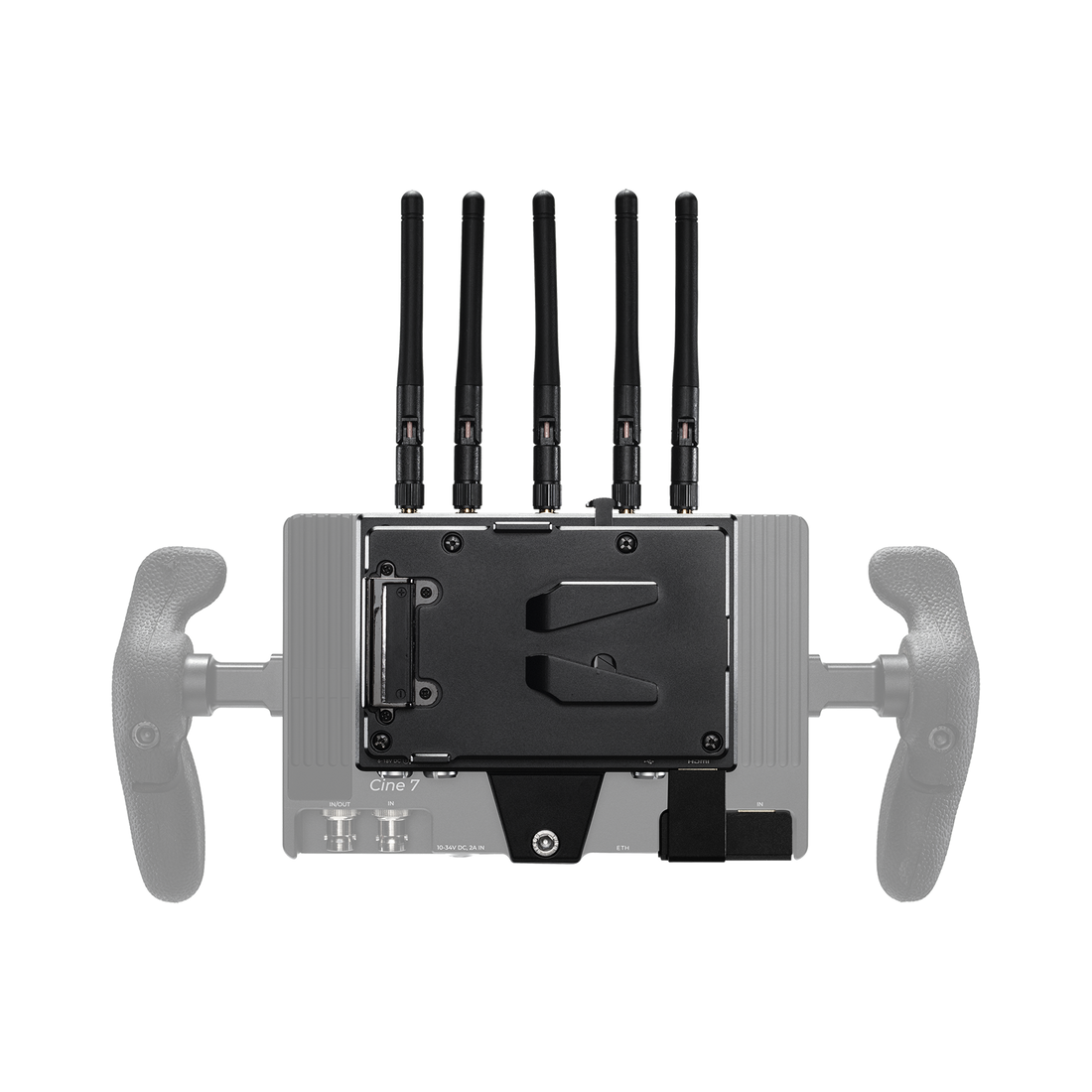

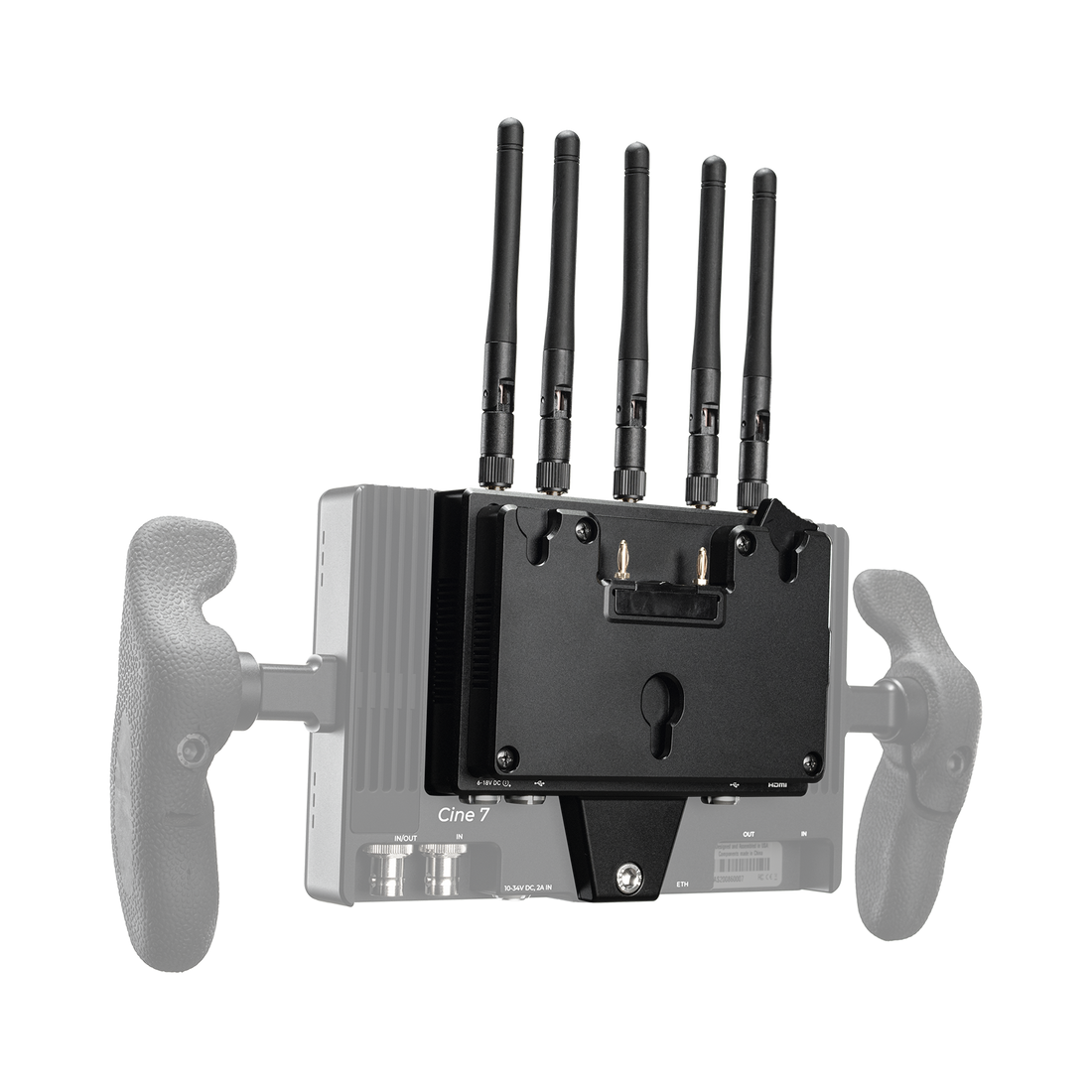

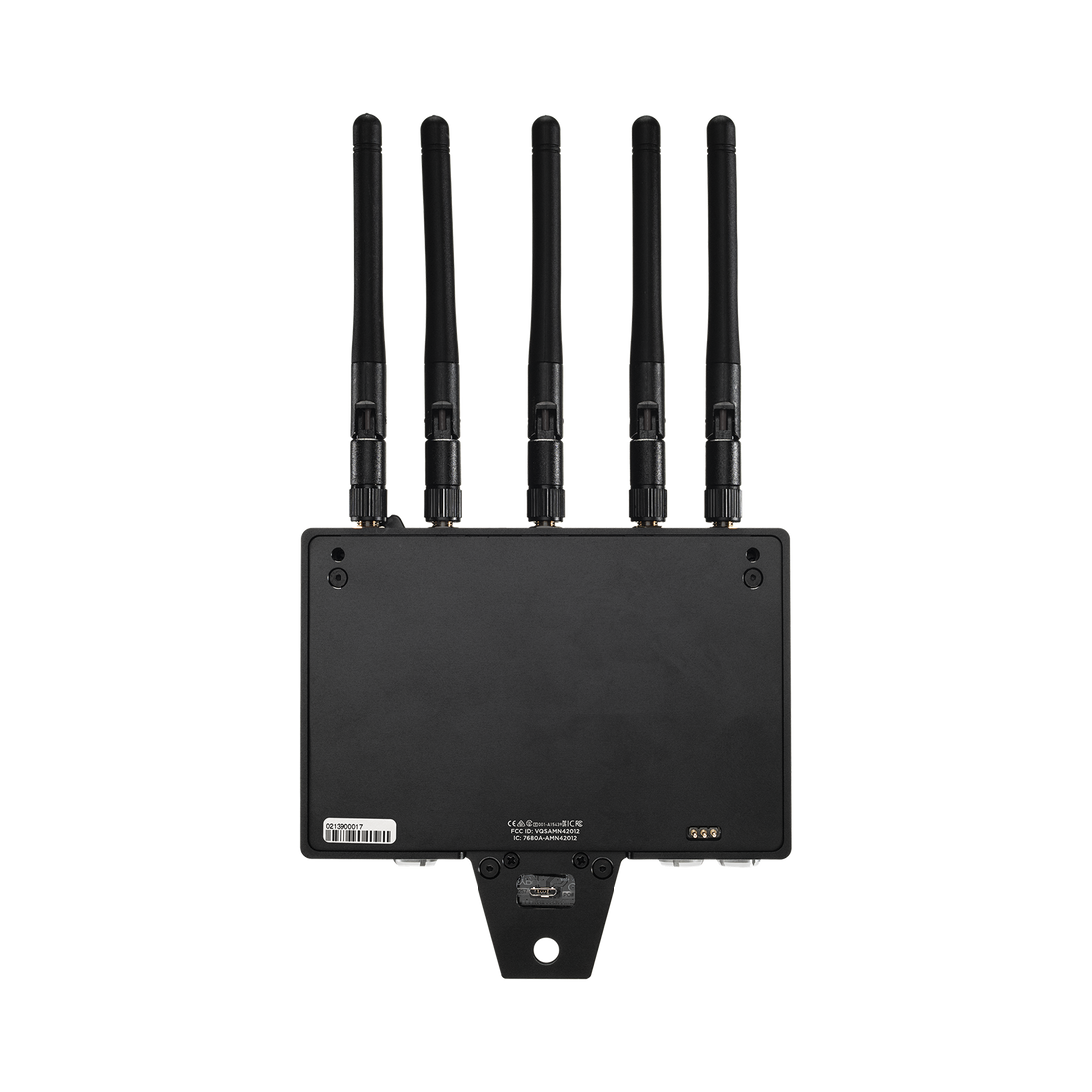

RX Module easily attaches to the back of Cine 7, 702 Touch, and Indie 7 Smart Monitors. Includes a V-Mount Battery Plate capable of battery power pass-through to both RX Module and monitor.

Zero-Delay 4K Wireless Video
Receive images up to 4Kp30 at a line-of-sight distance of up to 750ft (228m) with no image latency (>0.001sec).

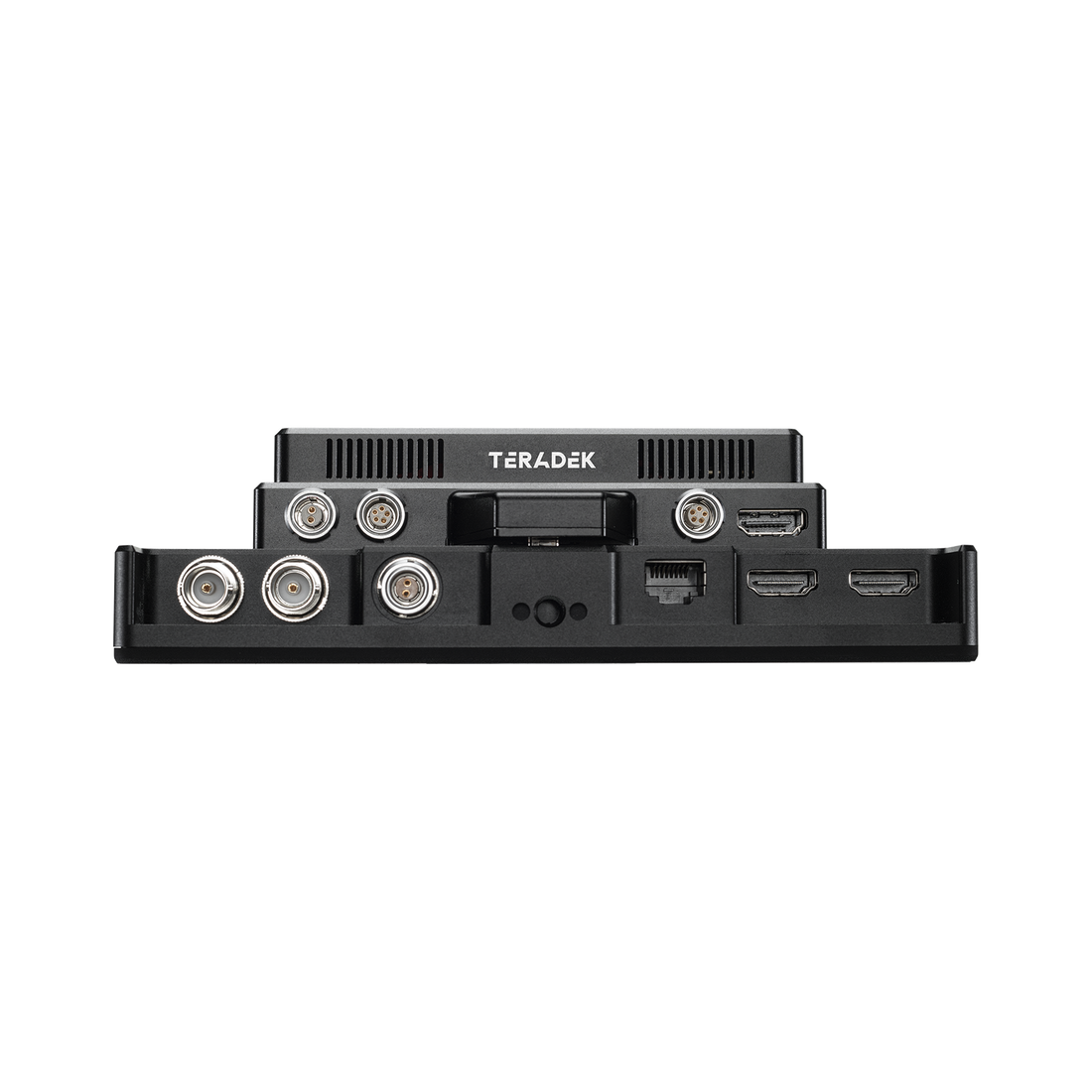

Output: 1x HDMI 2.0 (up to 4Kp30)

True HDR
Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut. Receive Log-enabled camera signals with wide dynamic range in order to monitor and achieve balanced highlight and lowlight regions with accurate color reproduction.

Improved Wireless Performance
Reliable signal reception over 13x 40MHz frequencies, with upgraded hardware and less image break-up than previous Bolt generations. Faster reconnection times, automatic signal quality switching, and a more robust frequency hopping algorithm. An additional 5GHz radio frequency link is available for high-traffic locations with excessive interference from other wireless devices.

Universal Cross-Compatibility between all Bolt 4K Devices
Receive signal from any Bolt 4K series TX device for expanding workflow requirements.

Bolt App for Android and Apple iOS
Remotely pair any TX/RX devices, manually designate specific 5GHz channels, and monitor interference with the 5GHz Spectrum Analyzer and Wireless Health analysis tools.
